About This

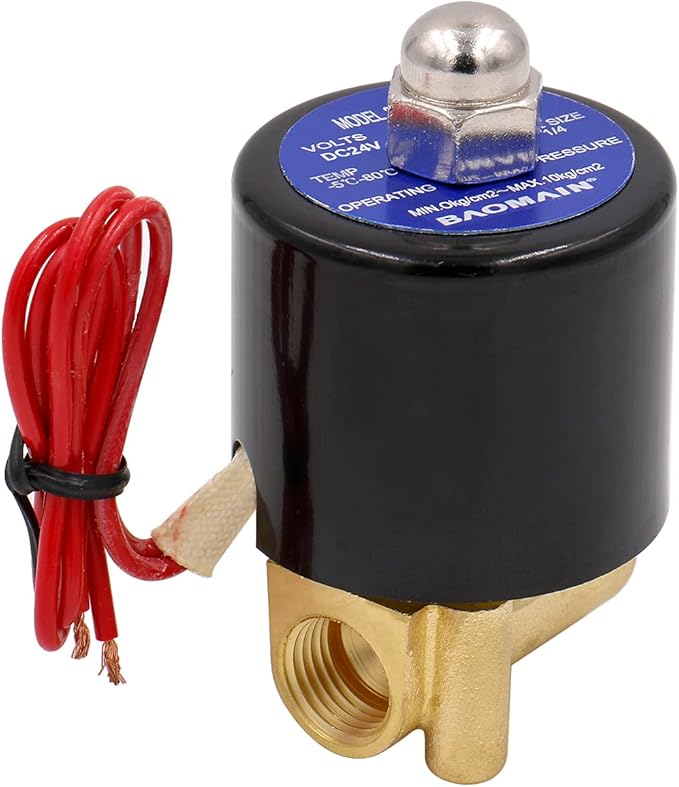

• HIGH-PERFORMANCE N/C LOGIC: This 2W-025-08 model is a Normally Closed (N/C) electric solenoid valve, meaning it stays shut when de-energized and opens instantly when 24V DC power is applied. Ideal for precise automated fluid control.
• DURABLE BRASS CONSTRUCTION: Forged with a heavy-duty brass body and high-quality NBR seals, providing excellent corrosion resistance and durability. The wet armature design ensures a responsive and stable operation over a service life of up to 50,000 cycles.
• VERSATILE TECHNICAL SPECS: Features a 2.5mm orifice and handles an operating pressure from 0 to 10kg/cm² (0-145psi). Designed to work within a temperature range of 23-170°F (-5 to 80°C), making it suitable for both cold and warm media.
• WIDE APPLICATION RANGE: A reliable solution for controlling the flow of various media, including water, compressed air, natural gas, and light oils (viscosity < 20CST). Perfect for DIY projects, garden irrigation, and industrial pipeline systems.
• IMPORTANT OPERATING NOTES: Rated for horizontal installation with IP54 waterproof protection. Please Note: This standard model is designed for intermittent use (less than 1 hour per session) to prevent coil overheating. For continuous 24/7 operation, please consider an energy-saving model.

Overview

• Material : Brass
• Brand : Baomain
• Item dimensions L x W x H : 1.53 x 1.53 x 2.91 inches
• Exterior Finish : Brass
• Inlet Connection Size : 0.25 Inches
• Outlet Connection Type : PT Thread
• Number of Ports : 1
• Specification Met : NSF
• Unit Count : 1.0 Count
• Manufacturer : Baomain Electric Co.,Ltd
